This app is designed with a Text Based Artificial Intelligent (TBAI) interface to make it easy to input known Metes and Bounds courses for a property boundary using simple text.

Optional Online Help

Four codes are required DIR, NE, Name, Unit: (CODE = VALUE) They MUST be entered on the FIRST FOUR LINES, as follows:

DIR = CW or CCW

CW is for a clockwise direction around the parcel.
CCW is for a counter clockwise direction around the parcel.

(The direction is required in order to properly calculate the area through curved segments.)

NE = 10000,10000 (Northing and Easting)

Substitute 10000,10000 for any value you want to use as the starting coordinate pair for the boundary.

Name = My first parcel

On the right side of the = sign type a description of the parcel or lot.

Unit = FT or M

FT is for the imperial (US) system.
M is for the metric system.

---

Starting on the fifth line, enter each course for the parcel or lot on a separate line using commas between the elements. This app will recognize Line and Simple Curve formats as follows:

[Line format] (Direction) Ndd-mm-ssE,distance,(POB or comments)

Example: N05-21-32E,143.23

If the direction and distance are a lead in course to the Point of Beginning, then add ',POB' at the end of the line to indicate that the closed parcel starts on the next line.

Example: N05-21-32E,143.23,POB

(See the bottom of this help menu for the types of course directions recognized by this app.)

[Curve format] c,(LTB, Chord Bearing or Radial Bearing) Ndd-mm-ssE,radius+/-,(Delta) dd-mm-ss, dd.ddd, Gdd.dddd or (curve length) Lxx.xx,(comments)

LTB Ndd-mm-ssE (The default type)
Chord Bearing: cNdd-mm-ssE (Precede the bearing with a 'c')
Radial Bearing: rNdd-mm-ssE (Precede the bearing with a 'r')

Example:
c,S32-26-35W,7539.44+,1-42-52

The TBAI utilizes the boundary information that is typically shown in Legal Descriptions, Plats, Results of Survey, etc.

---

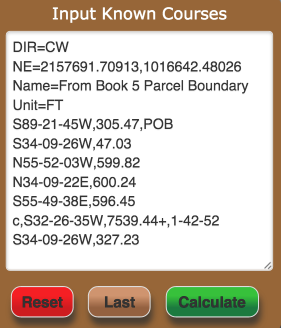

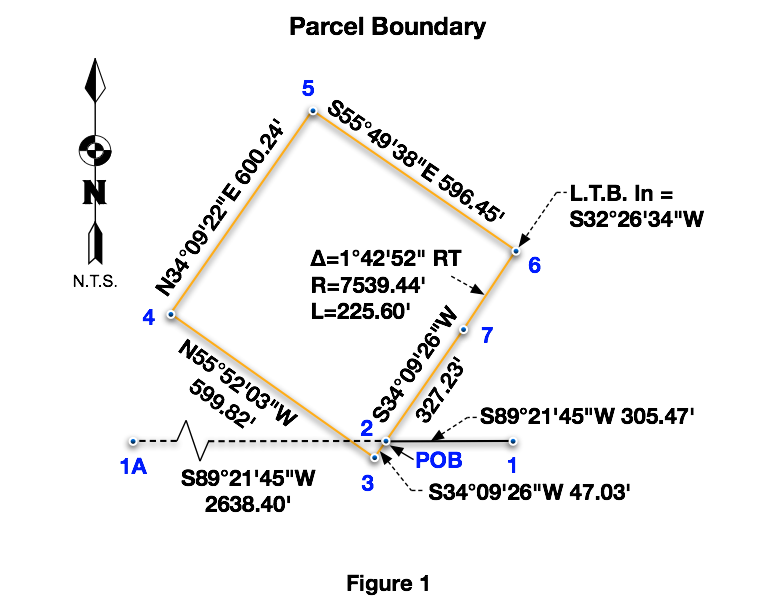

The following shows the TBAI with an example project from Book 5 - Parcel Boundary:

---

NOTES:
Course direction formats:

Bearings: (Ndd-mm-ssE, Ndd.dddddE) all four quadrants
North Azimuth: (NAZdd-mm-ss, NAZdd.ddddd)
Cardinal: (N, North, S, South, E, East, W, West)
Grad a.k.a. Gon: (Gxx.xxxxx)
Delta: (dd-mm-ss, dd.ddddd or Gxx.xxxxx)

Back

Help

This app is designed with a Text Based Artificial Intelligent (TBAI) interface to make it easy to input known Aliquot Parts of a legal description using simple text.

Optional Online Help

Two codes are required SEC and TR: (CODE = VALUE)
They MUST be entered on the FIRST TWO LINES, as follows:

SEC = Section #
TR = T.?N. R.?W.

These values will be displayed on the typical section drawing when the "Plot" button is tapped.

Starting on the third line, type in the quarter quarter call-out as such:

NE4 SW4 etc.

Each quarter quarter call-out needs to be on a separate line.

Example:
SEC=27
TR=T.4S. R.3E.
W2 NW4
NE4 NW4
E2 SW4
S2 NE4
SE4

---

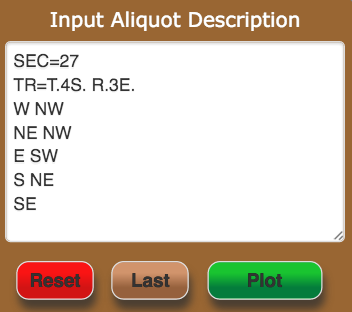

The following shows the TBAI with a typical entry:

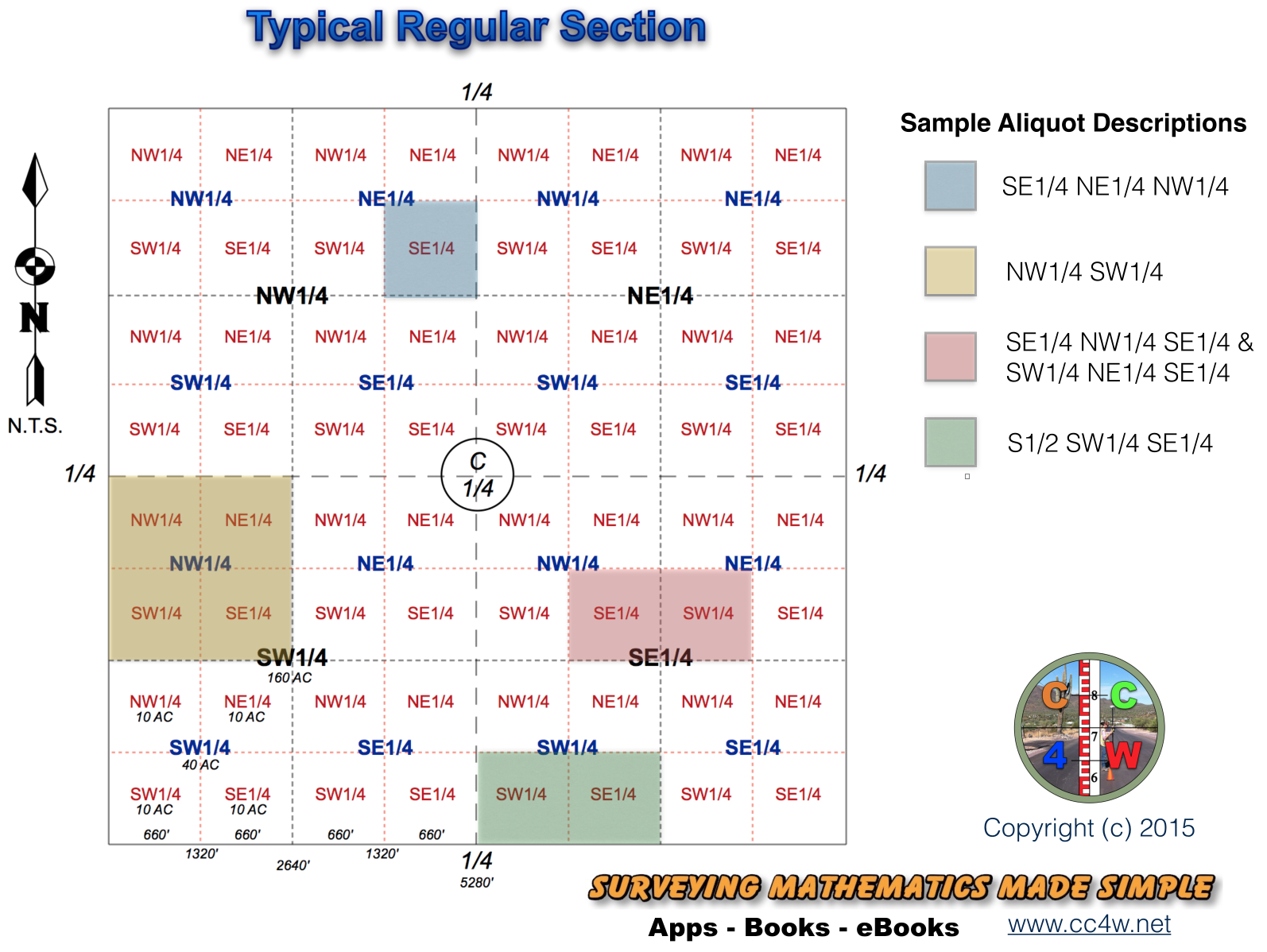

When the "Plot" button is tapped, each quarter quarter call-out will be plotted on a typical section layout in a different color. A legend will be shown for each color and along with its description.

---

NOTES:
Aliquot Part formats:

NE
NE4
SW
SW4
N
N2
(The numbers 4 for 1/4 and 2 for 1/2 can be omitted)

Back

Examples

Back

Notice

The content of this application is for your general information and use only. It is subject to change without notice.

Neither we nor any third parties provide any warranty or guarantee as to the accuracy, timeliness, performance, completeness or suitability of the information and materials found or offered in this application for any particular purpose. You hereby acknowledge that such information and materials may contain inaccuracies or errors and we expressly exclude liability for any such inaccuracies or errors to the fullest extent permitted by law.

Your use of any information or materials in this application is entirely at your own risk, for which we shall not be liable. It shall be your own responsibility to ensure that any products, services or information available in this application meet your specific requirements.

Back

CC4W

I have several decades of land surveying and civil engineering experience.

I was first licensed in 1983 in Wyoming and Utah. In 1986 I became licensed in Arizona. I was appointed a United States Mineral Surveyor in 1986.

I have been practicing Land Surveying in Arizona since 1990. I became a Certified Federal Surveyor in 2007.

I have several decades of computer programming experience related to computer aided drafting and coordinate geometry.

I am the pioneer in the use of Digital Signatures in Arizona for professional documents.

Back

Free Stuff

www.cc4w.net

Back

Apps - Books

www.cc4w.net

Back

Diagram

Back

Diagram

Back

Codes

(Required codes)
DIR = CW or CCW
NE = 10000,10000 (Northing,Easting)
Name = My First Parcel
Unit = FT or M

Back

????

(Required codes)
SEC = Section #
TR = T?N R?E

Back

Examples

DIR=CW
NE=2157691.70913,1016642.48026
Name=From Book 5 Parcel Boundary
Unit=FT
S89-21-45W,305.47,POB
S34-09-26W,47.03
N55-52-03W,599.82
N34-09-22E,600.24
S55-49-38E,596.45
c,S32-26-35W,7539.44+,1-42-52
S34-09-26W,327.23
---
DIR=CW
NE=2157691.70913,1016642.48026
Name=From Book 5 Parcel Boundary
Unit=FT
g299.291666,305.47,POB
g237.9524691,47.03
g337.925,599.82
g37.9512344,600.24
g137.969522,596.45
c,g236.0478388,7539.44+,g1.904933
g237.9524691,327.23
---
DIR=CW
NE=10000,10000
Name=Mensura
Unit=M
e,51.54,PT B
s,33.22,PT C
w,36.38,PT D
s,11.55,PT E
n45w,21.45,PT F
n,29.60
